Wall – Hung Water heater and Combi Boiler Burner

Wall–Hung  Water heater  and Combi  Boiler have Burner blades with aluminized body and stainless steel head flame.
Depending on the application and customer needs, the blades are produced in two models. Model “A” with 158mm head flame length and model “a” with 138mm head flame length. Also depending on the desired heat capacity, each Burner consists of 8 to 20 blades. B-type Burners are made of stainless steel and are used for lower heating capacities.

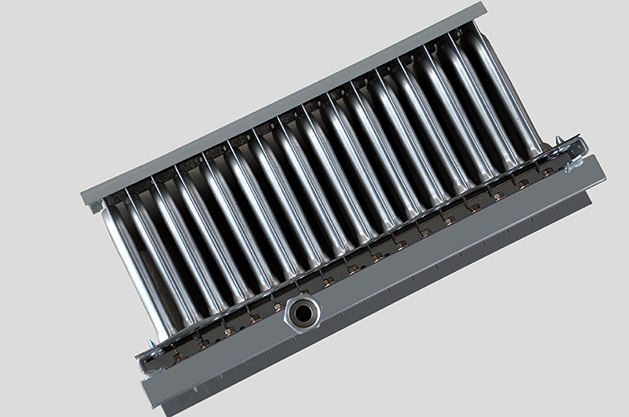

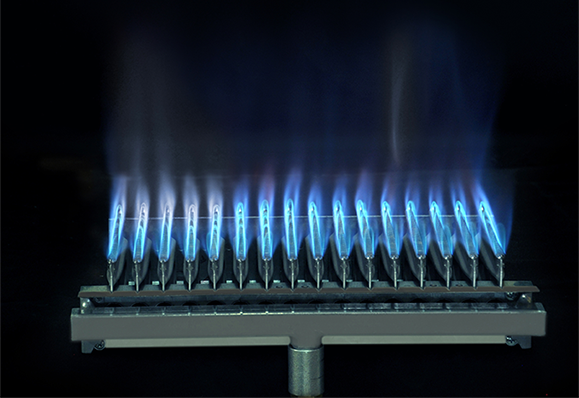

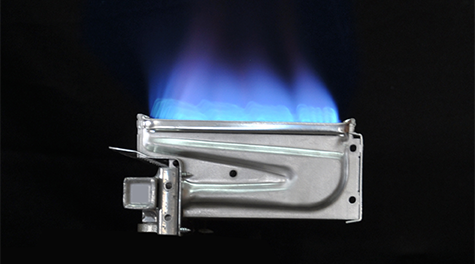

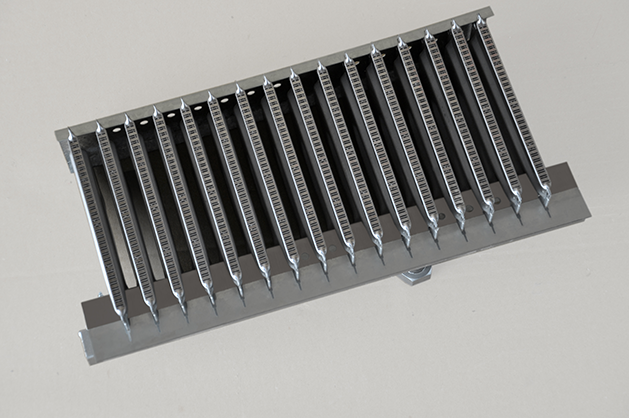

Model A & a

b_200_150_16777215_00_images_products_2-1-3.pngb_200_150_16777215_00_images_products_2-1-2.pngb_200_150_16777215_00_images_products_2-1-1.pngb_200_150_16777215_00_images_products_2-1-4.png

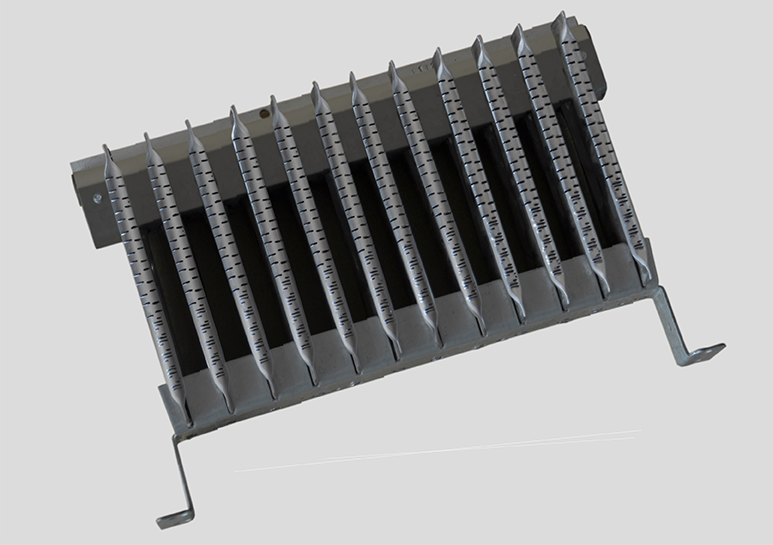

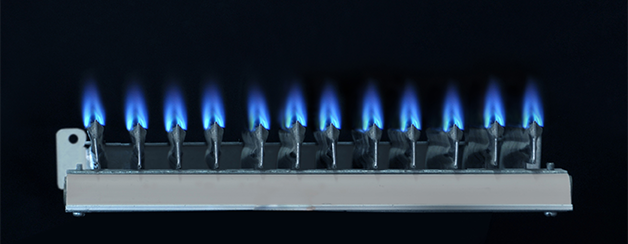

Model B

b_200_150_16777215_00_images_products_2-2-2.pngb_200_150_16777215_00_images_products_2-2-1.png

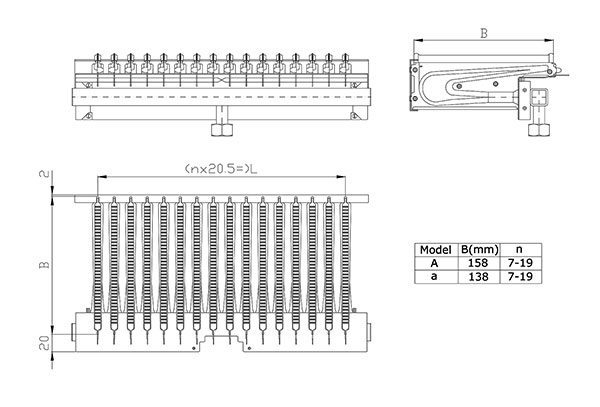

Burner drawing
